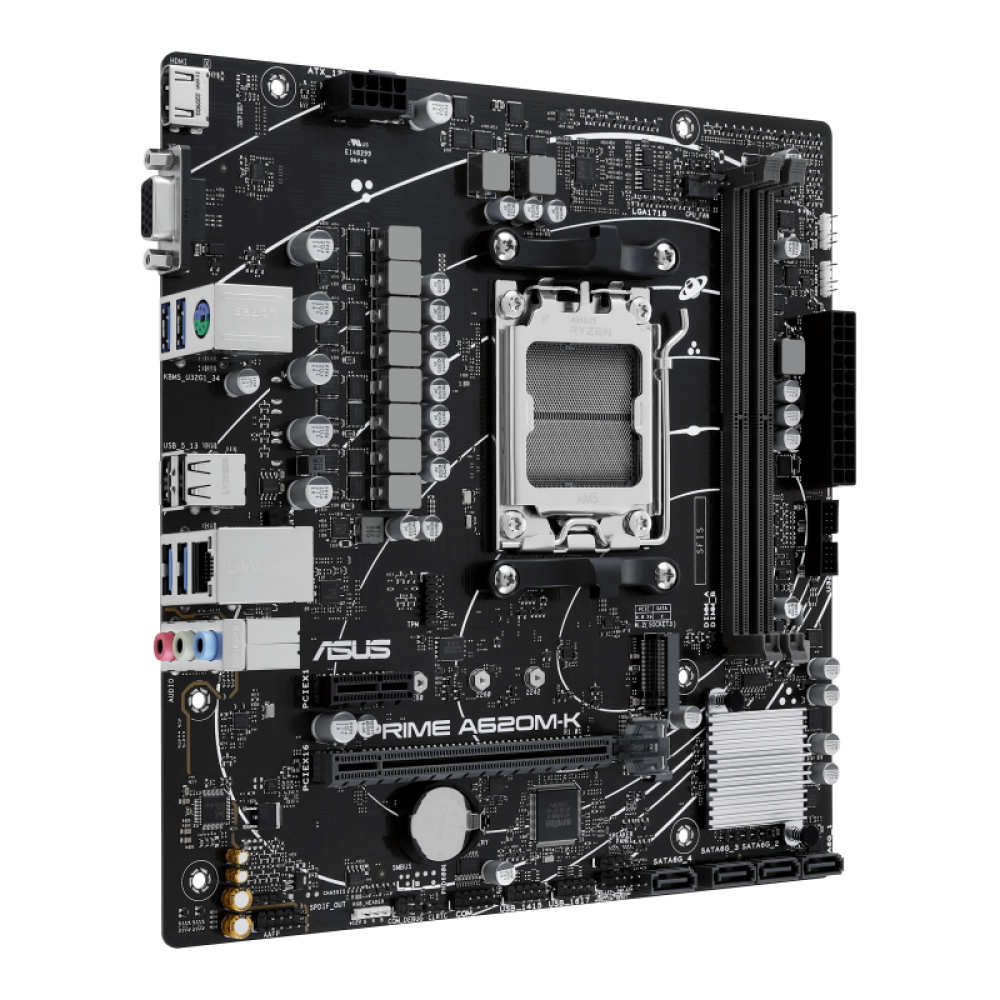

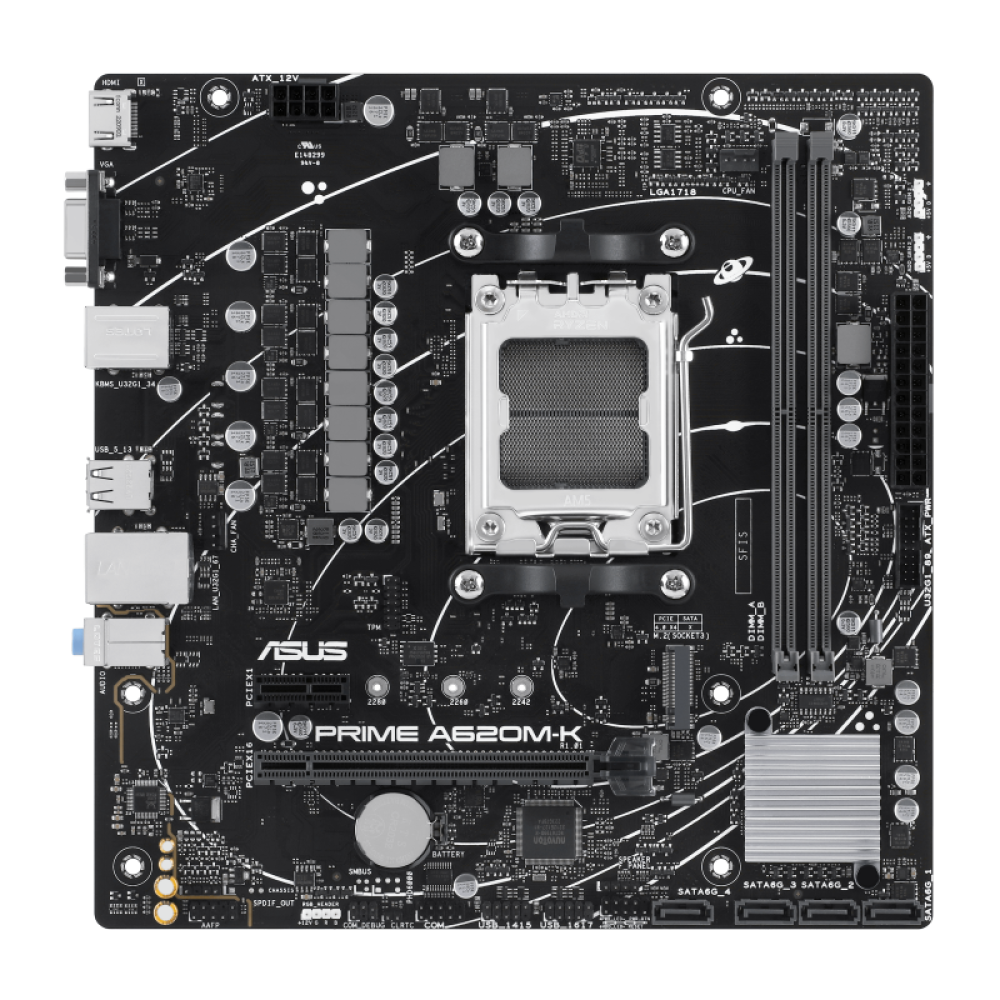

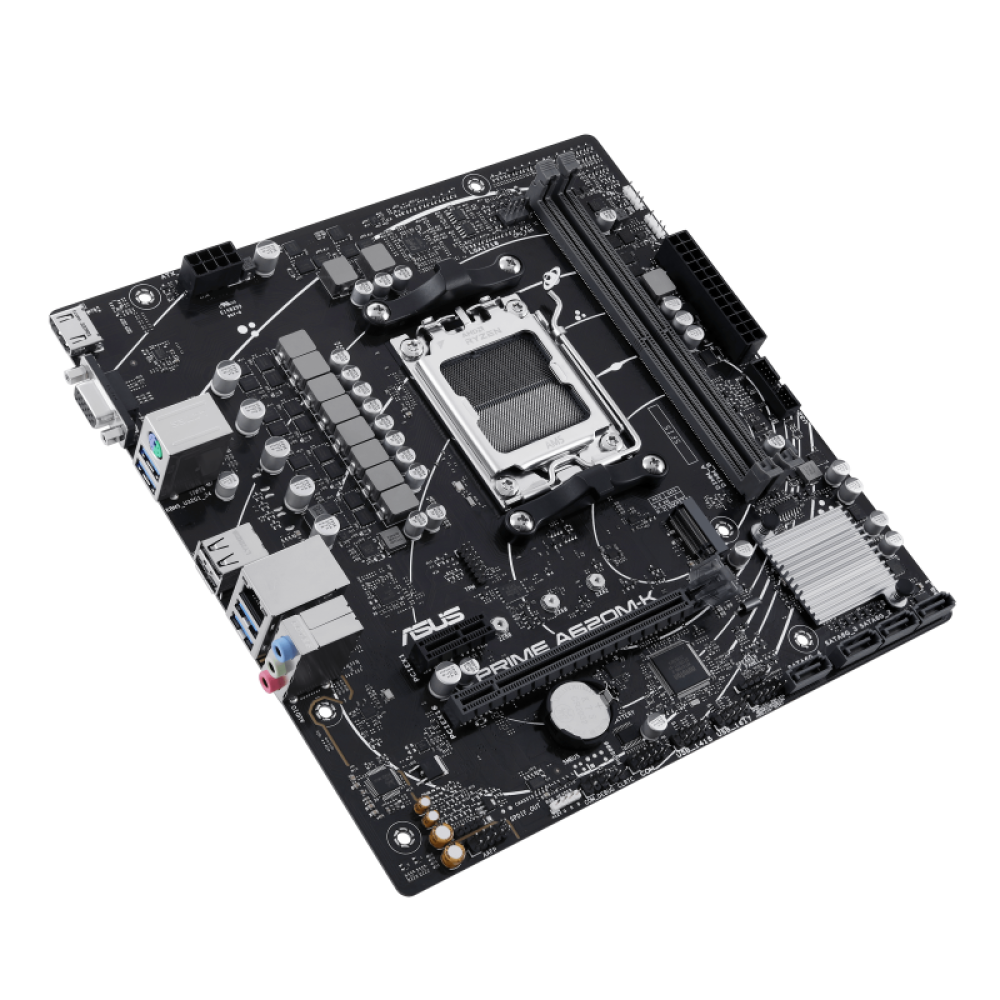

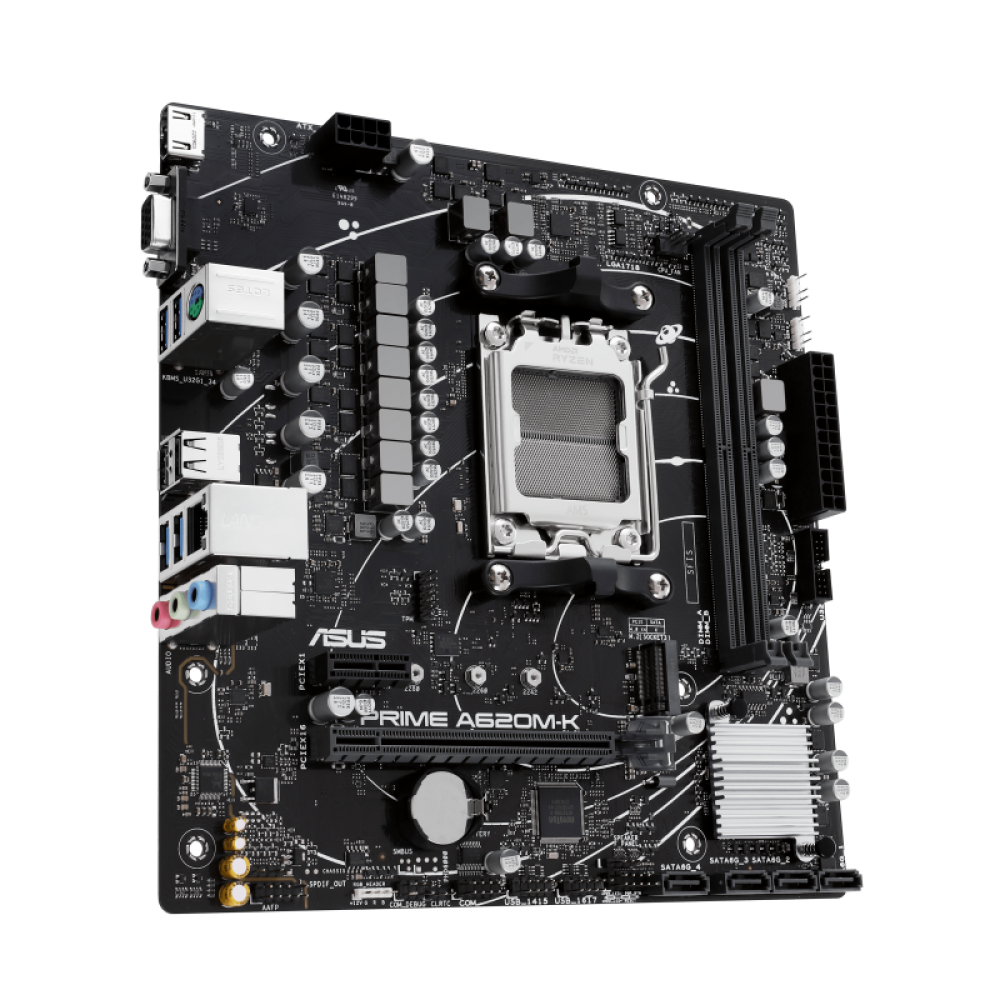

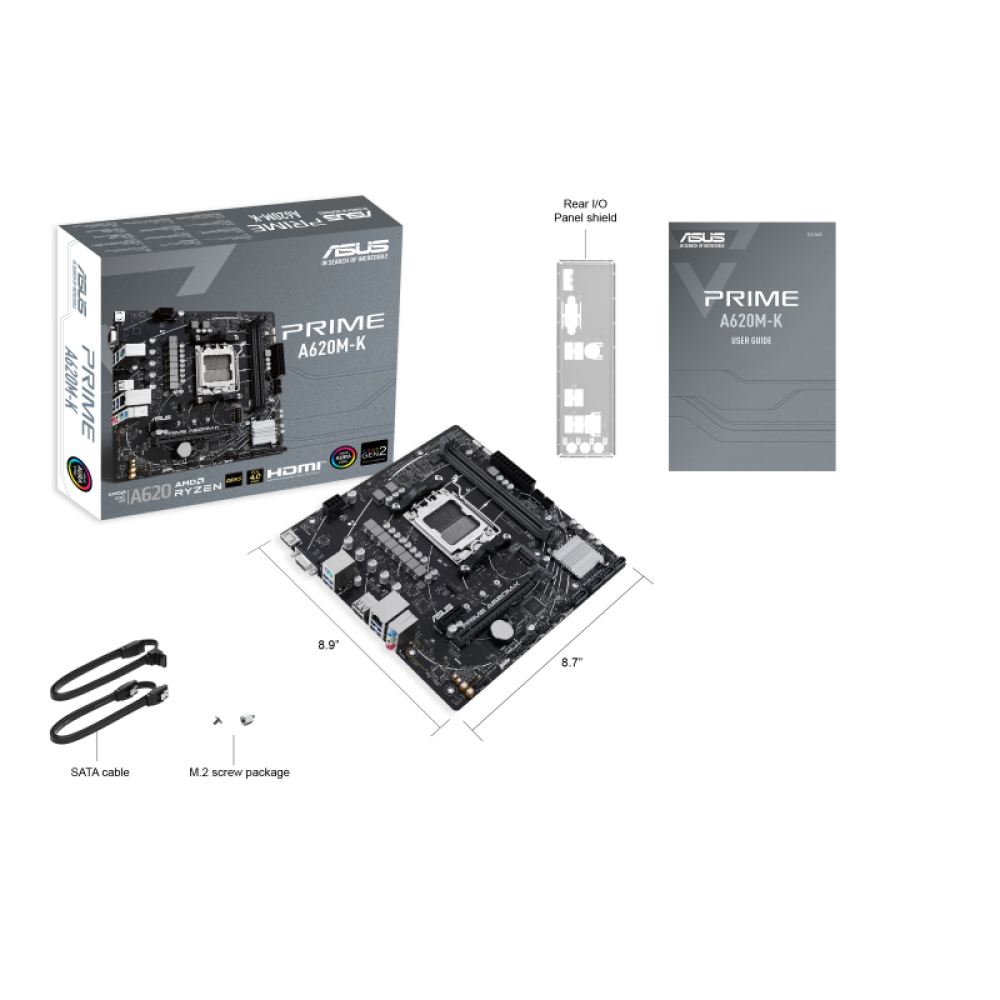

The ASUS PRIME A620M-K motherboard offers the perfect combination of performance and innovation, making it the ideal choice for users looking to build a high-end system based on AMD Ryzen™ 7000 series processors. With support for modern technologies like DDR5 and PCIe 4.0, this motherboard ensures a smooth and efficient computing experience.
Features:
- Ready for advanced AI: Designed to meet the needs of advanced AI applications, providing the power and connectivity they need.
- Ultra-fast connectivity: Supports PCIe 4.0, M.2 up to 64 Gbps, Realtek 1 Gigabit Ethernet, and USB 3.2 Gen 1 Type-A ports.
- Comprehensive Cooling: Equipped with a PCH heatsink and Fan Xpert technology to ensure system stability under high loads.
- Aura Sync RGB Lighting: Includes Addressable Gen 2 and Aura RGB headers to customize and sync lighting with compatible components.
- AI Noise Cancellation: Two-way technology reduces background noise on voice calls and video conferences for clear communication.
Specifications:
- Product Name: ASUS AMD A620 micro-ATX motherboard, supports DDR5, PCIe 4.0 graphics, M.2 PCIe 4.0, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6Gbps, 2-way intelligent noise cancellation, Aura Sync lighting.
- Model Name: PRIME A620M-K
- Model Number: 90MB1F40-M0EAY0
- Supported processor: AMD AM5 socket for AMD Ryzen™ 7000, 8000, and 9000 series processors
- Chipset: AMD A620
- Motherboard Size: micro-ATX Form Factor
- Motherboard dimensions: (22.6cm x 22.1cm)
- Memory:
- 2 DIMM slots, maximum capacity 96GB
- DDR5 support at speeds up to 7200+ MHz (OC)
- AMD EXPO™ technology support for extended overclocking profiles
- Graphics:
- VGA port
- HDMI™ port supports 4K resolution at 60Hz
- Expansion slots:
- PCIe 4.0 x16 slot (x16 mode)
- PCIe 3.0 x1 slot
- Storage:
- M.2 slot (M key) supports PCIe 4.0 x4
- 4 SATA 6Gbps ports
- Network: Realtek 1 Gigabit Ethernet port
- USB ports:
- Background:
- 4 USB 3.2 Gen 1 Type-A ports
- 2 USB 2.0 Type-A ports
- Front:
- USB 3.2 Gen 1 header supports two additional ports
- Two USB 2.0 headers support 4 additional ports.
- Sound: Realtek High Definition 7.1 channel audio chip, with playback support up to 24-bit/192 kHz

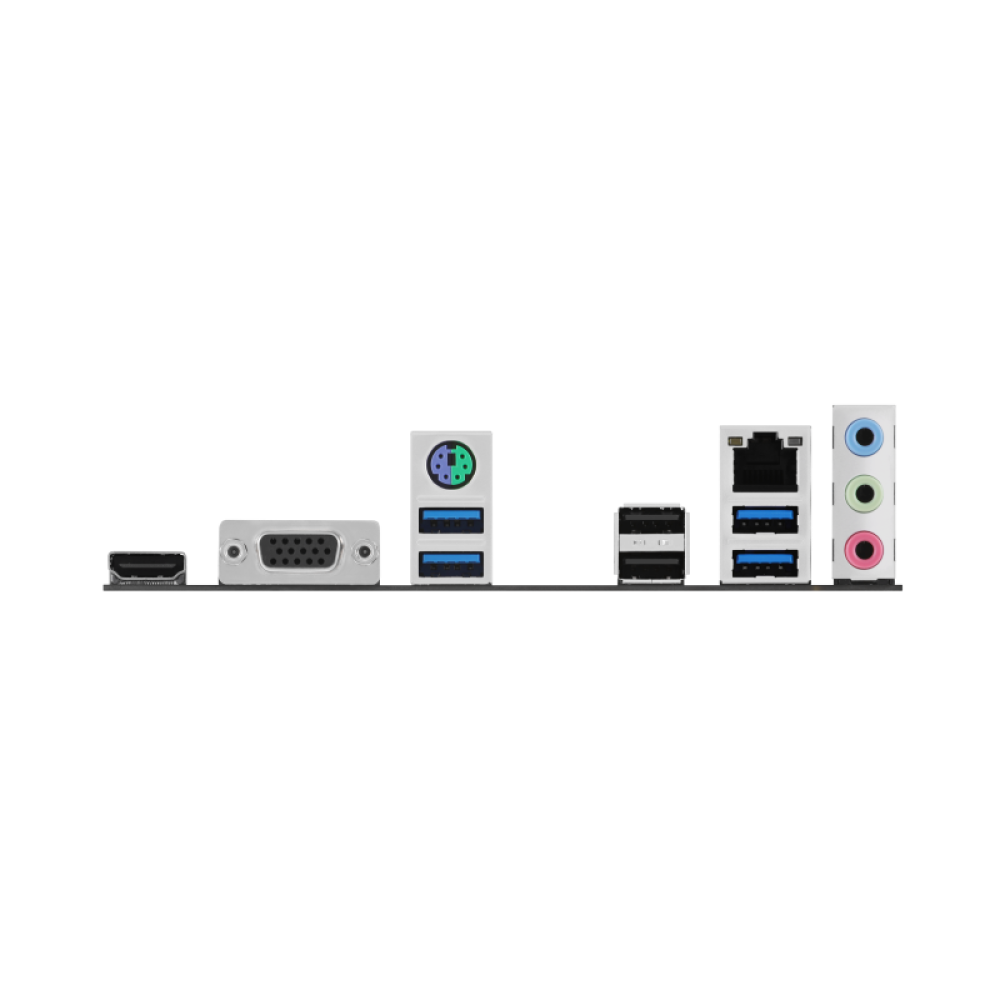

- Rear I/O ports:
- 4 USB 3.2 Gen 1 Type-A ports
- 2 USB 2.0 Type-A ports
- VGA port
- HDMI™ port
- Realtek 1 Gigabit Ethernet port
- 3 audio jacks
- PS/2 combo port for keyboard/mouse
- Internal I/O connectors:
- Cooling:
- 4-pin CPU fan header
- 4-pin chassis fan header
- Energy:
- 24-pin main power connector
- 8-pin +12V connector
- Storage:
- M.2 slot (M key)
- 4 SATA 6Gbps ports
- USB:
- USB 3.2 Gen 1 header supports two additional ports
- Two USB 2.0 headers support 4 additional ports.
Miscellaneous:
- 2 Addressable Gen 2 headers
- Aura RGB header
- CMOS scan head
- COM port header
- Front-facing audio head (AAFP)
- S/PDIF Out Header
- speaker head
- SPI header
With these advanced features and specifications, the ASUS PRIME A620M-K motherboard is an ideal choice for building a powerful and reliable computing system that meets the needs of advanced users.
