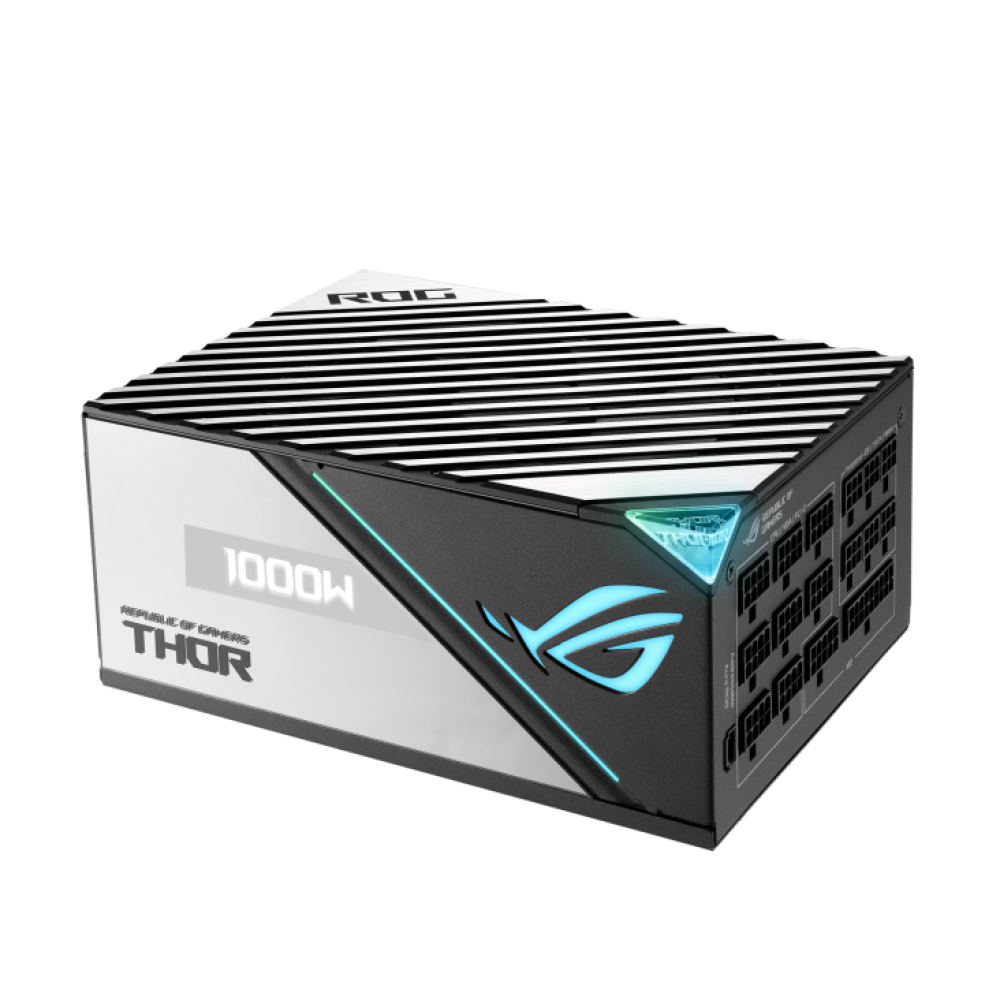

The ASUS ROG Thor 1000W Platinum I is one of the quietest power supplies in its class, earning Lambda A++ certification that confirms its ability to deliver powerful performance in complete silence.
Main Features:
- ROG Heatsinks : Cover critical components, helping to lower temperatures and reduce noise, while increasing component lifespan.

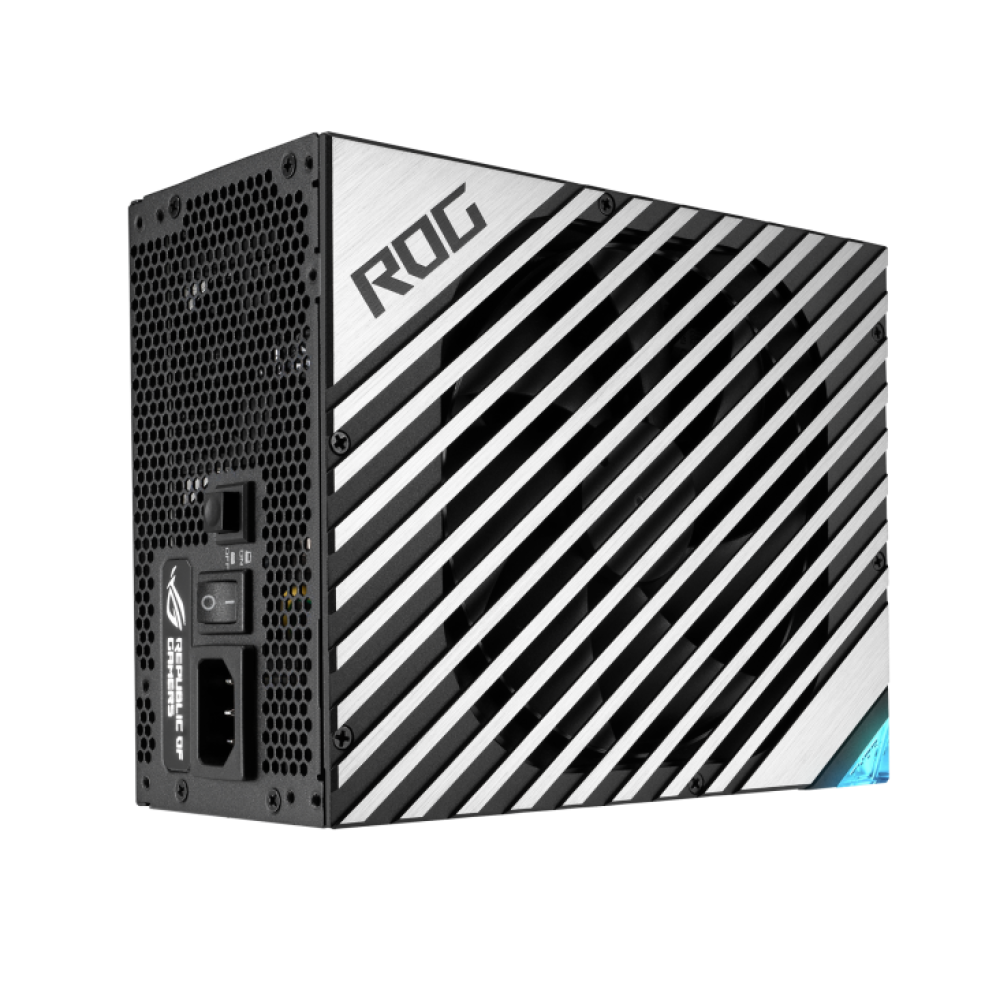

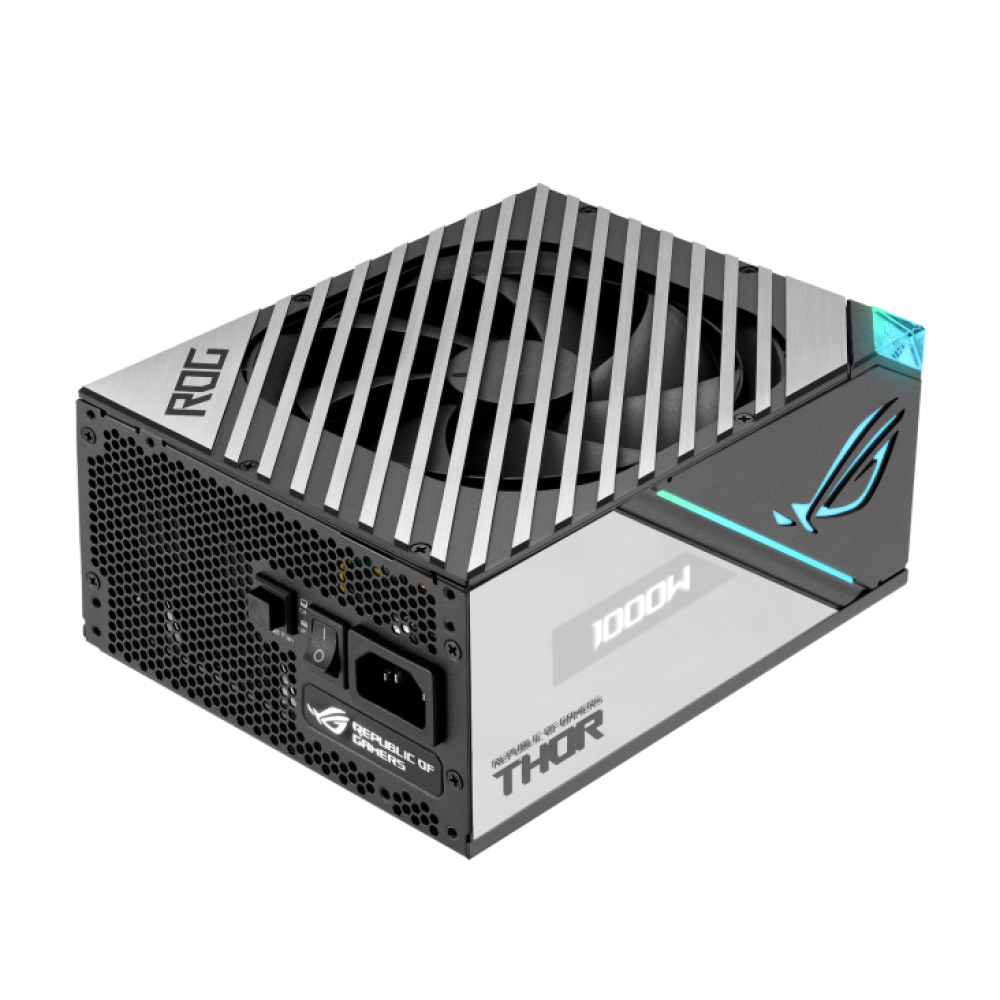

- 135mm Axial-tech Fan: Equipped with PWM control to deliver excellent airflow with low noise level, maintaining stable temperatures.
- 80 Plus Platinum Certification: Ensures up to 92% efficiency at 50% load, reducing power loss and heat, and increasing system reliability.

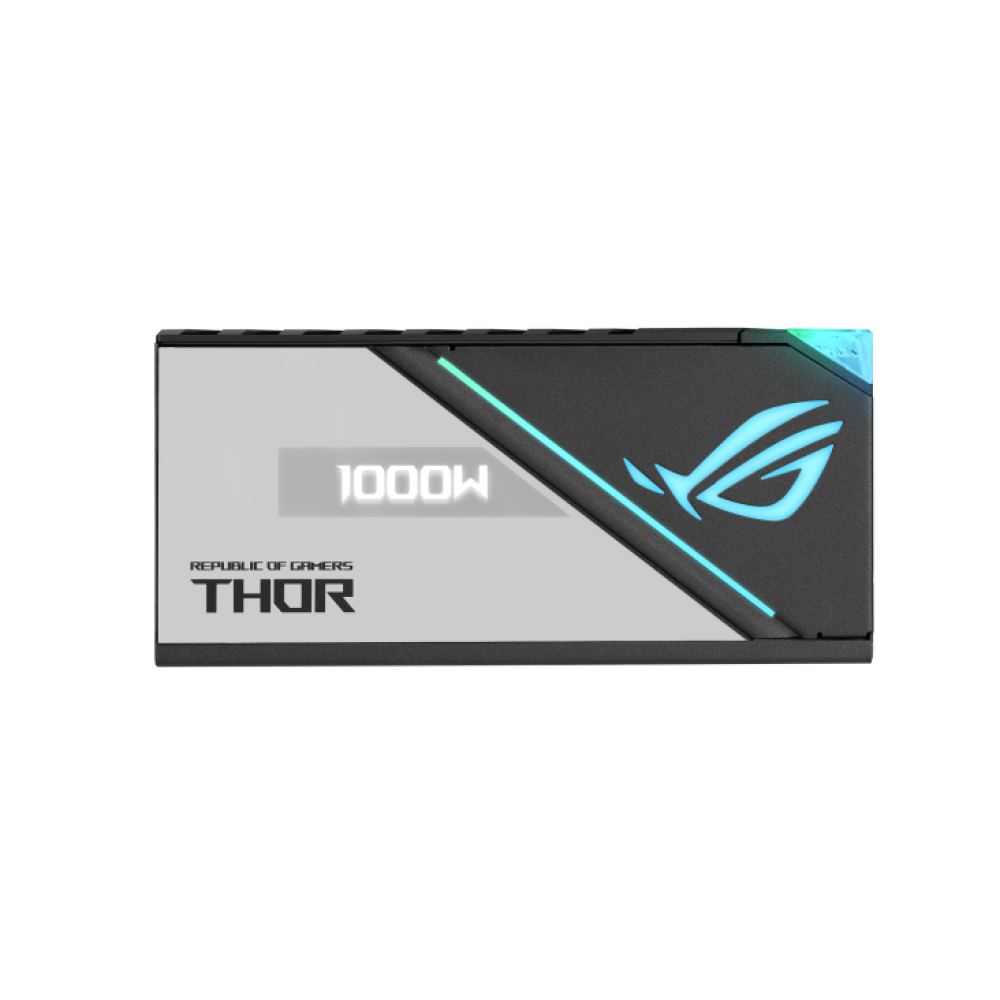

- OLED display for power display: It enables real-time monitoring of energy consumption, helping users manage energy consumption efficiently.
- Aura Sync Support: Allows you to customize and synchronize lighting effects with compatible hardware components, for a consistent aesthetic throughout your system.
- High quality cored cables: Made of premium materials, it facilitates installation and ensures neat and efficient cable management.
- PCIe Gen 5.0 Ready: Equipped with a 16-pin PCIe cable, it is capable of providing up to 600W of power to modern graphics cards, making it ready for the demands of the future.
Technical Specifications:
- Product Name: ASUS ROG THOR Gaming Power Supply 1000W 80+ Platinum I I-Black
- Model Number: ROG-THOR-1000P2-GAMING
- Standard: ATX12V
- PFC Type: Active PFC
- Dimensions: 190mm (L) x 150mm (W) x 86mm (H)
- Efficiency : 80Plus Platinum
- Mean Time Between Failures (MTBF): More than 120,000 hours at 25°C
- Security Features: OPP/OVP/UVP/SCP/OCP/OTP
- Hazardous materials: ROHS compliant
- AC input voltage range: 100-240V
- DC voltage output:
- +3.3V: 25A
- +5V: 25A
- +12V: 83A
- -12V: 0.3A
- +5Vsb: 3A
- Total power: 1000W

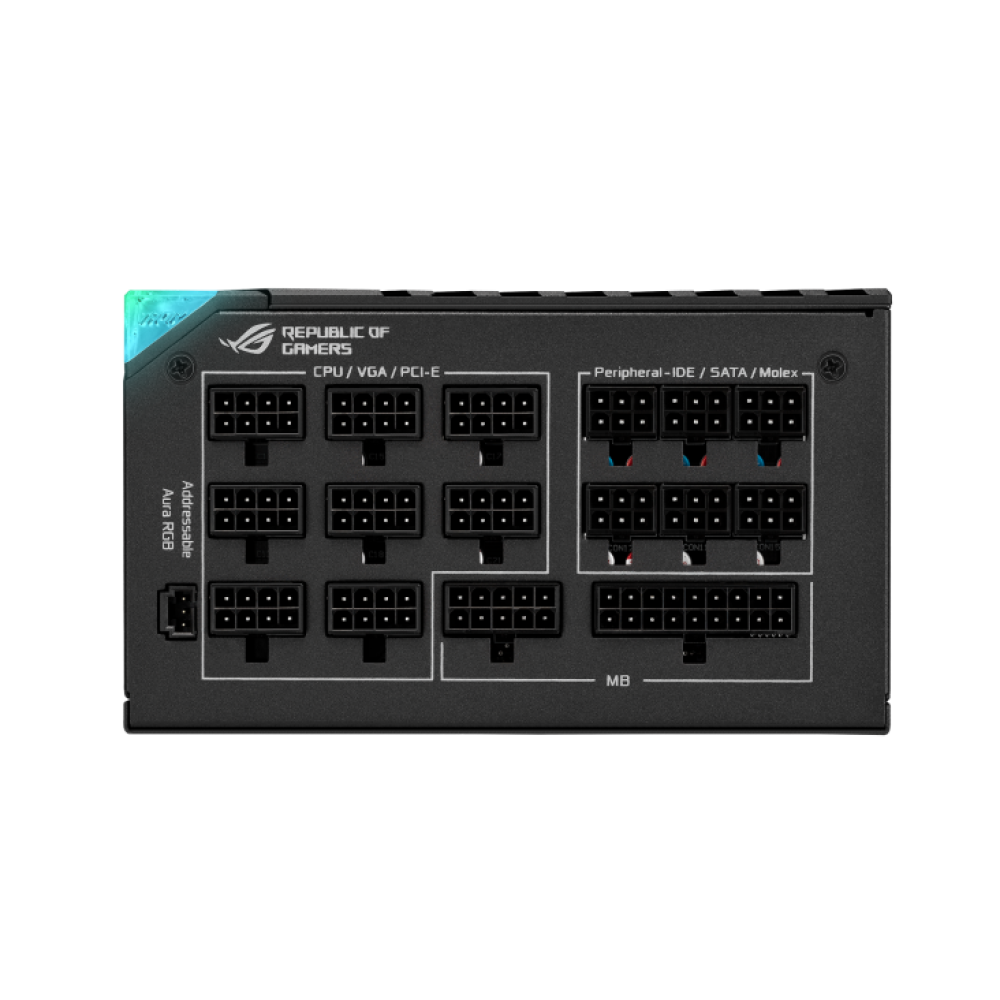

- Cable Connectors:
- 24/20pin motherboard connector x 1
- Processor connectors 4+4 pin x 2
- 16-pin PCI-E connector x 1
- PCI-E 6+2 pin x 8 connectors
- SATA connectors × 12
- Terminals × 6
- Package Contents:
- Power cable ×1
- Motherboard power cable ×1 (610mm)
- Processor cables x 2 (650mm)
- PCI-E 16-pin cable x 1 (675mm)
- PCI-E 1 to 1 x 4 Cables (675mm)
- PCI-E 1 to 2 x 2 Cables (675+75mm)
- SATA Cables 1 to 4 x 3 (400+120+120+120mm)
- 1 to 3 x 2 terminal cables (450+120+120mm)
- Controllable RGB cable x 1 (800mm)
- ROG Sticker ×1
- ROG Cable Ties x 6
- Sheathed Cable Clips (6 Pin) x 4
- Sheathed Cable Clips (8 Pin) x 10
- Sheathed Cable Clips (24 Pin) x 2
- Frame screw set ×1
- Cable Ties x 12
- User Manual × 1
- Weight: 2.37 kg
- AURA SYNC SUPPORT: ARGB lighting
- Cybenetics Noise Level Certification: A++
