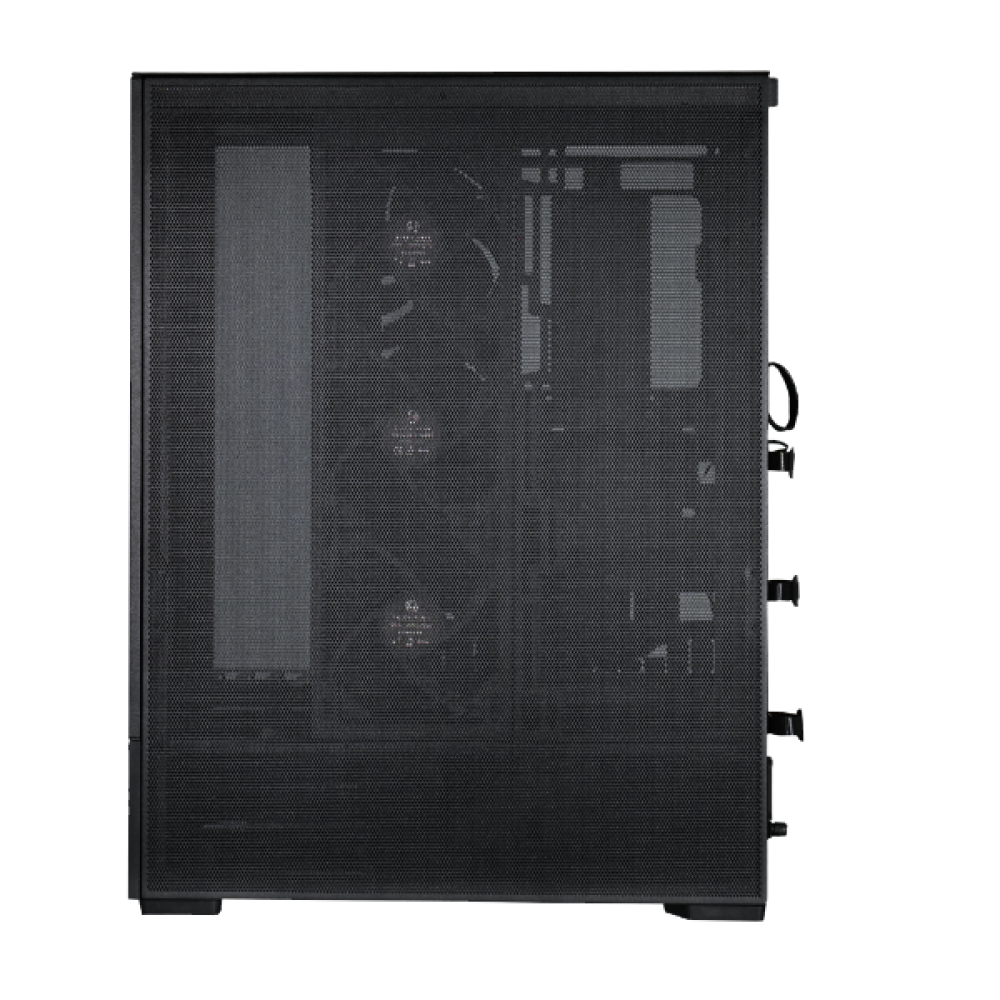

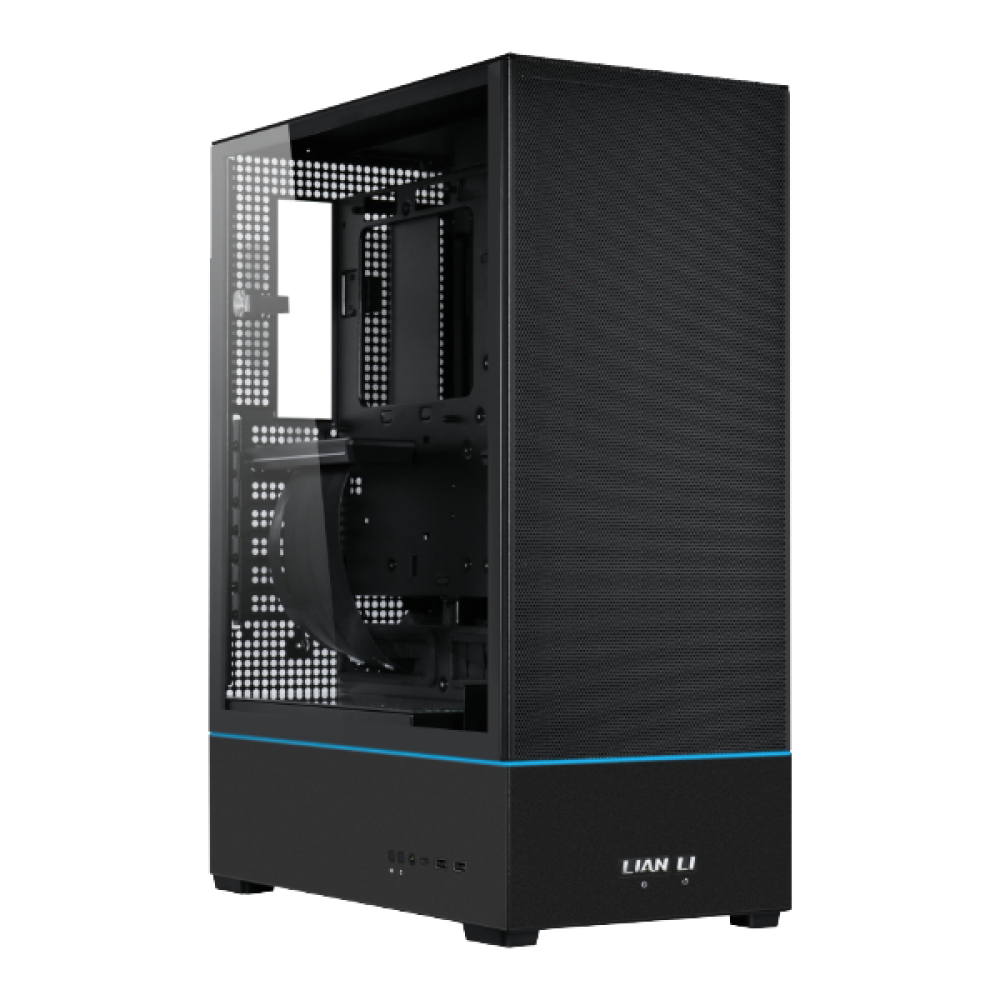

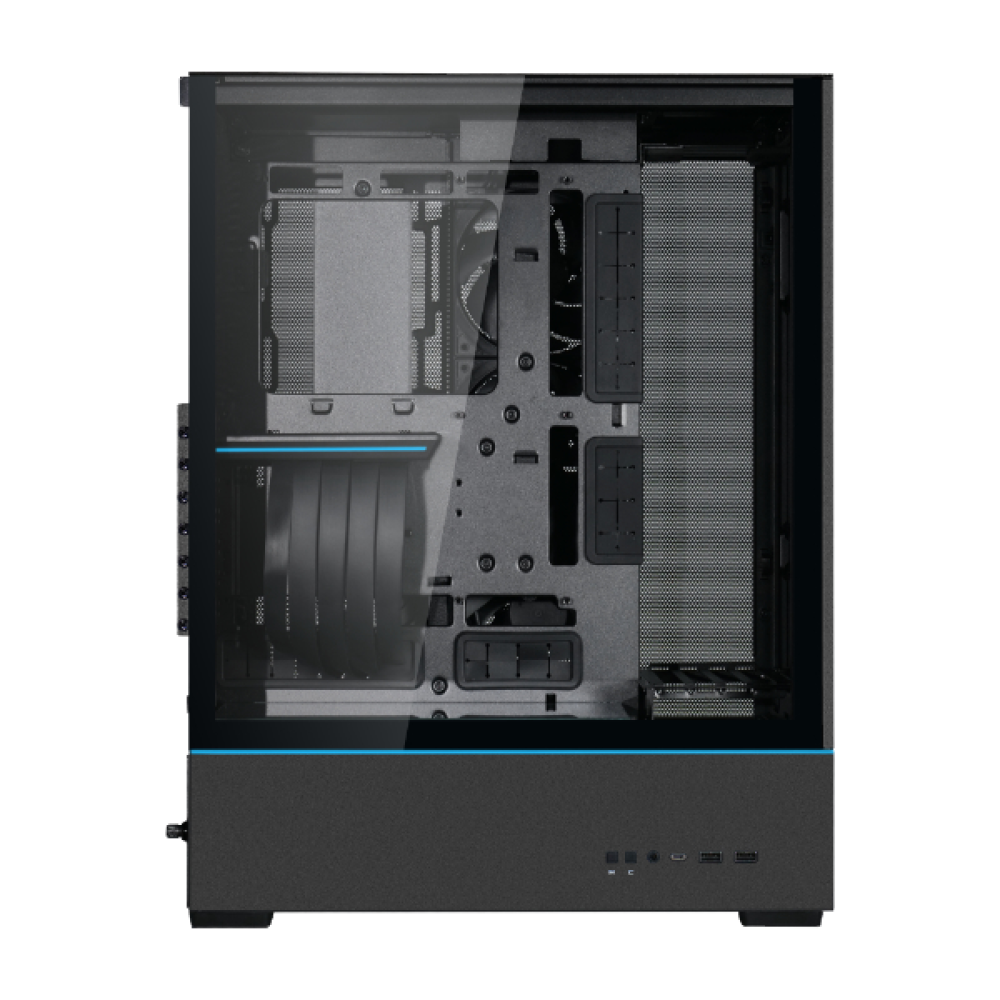

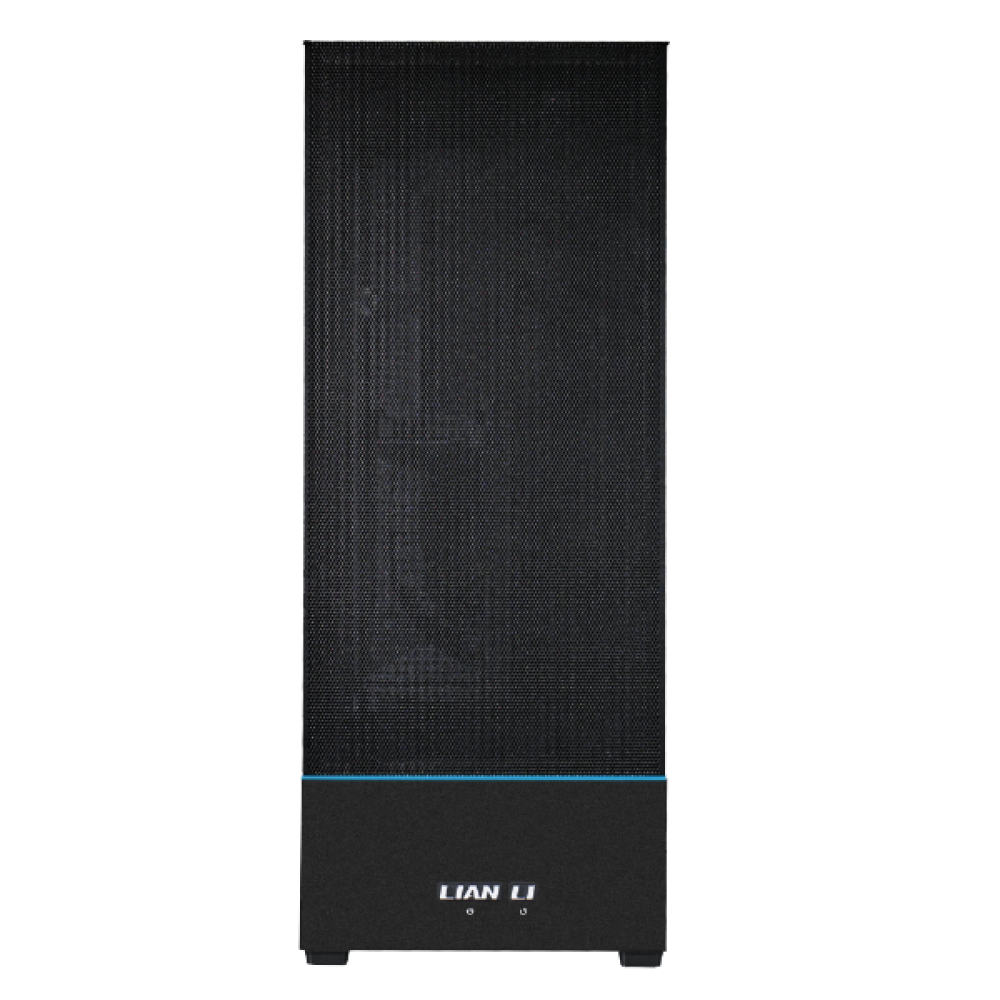

The LIAN LI SUP01 computer case offers an innovative design that combines elegance and efficiency, minimizing desktop space without sacrificing cooling performance or component compatibility.
Features:
- 45L Vertical Platform Design: Reduces desktop space compared to traditional structures.
- Front GPU Mounting: With adjustable mounting brackets, providing a unique visual and cooling style.
- Independent three-chamber cooling system: Provides direct and efficient cooling to all essential components.
- 510mm PCIe 4.0 Cable with RGB Lighting Cover: Shares the same lighting effects with the ARGB strip built into the chassis.
- External 120mm fan mount at the back: to push fresh air into the case.
- Three 120mm side-mounted performance fans: To expel hot air from the GPU.
- Support for 360mm/280mm liquid coolers: with a maximum pump height of 88.2mm.
- Support for motherboards up to ATX size: including motherboards with rear connections.
Specifications:
- Product Name: Lian Li ATX Mini-SUP01 Computer Case - Black
- Model Name: SUP01
- Model Number: G99.SUP01B.00
- Brand: LIAN LI
- the color: black
- Compatibility: Supports ATX , microATX , and Mini-ITX motherboards, as well as ATX motherboards with rear connections .
- Package Contents:
- SUP01 Structure
- 510mm PCIe 4.0 Cable with RGB Lighting Cover
- Three 120mm performance fans pre-installed
- External mount for 120mm fan
- Ports:
- Play button
- Restart button
- 2 × USB 3.0 Type-A
- 1 × USB 3.1 Type-C
- 1 x 3.5mm audio port
- Buttons to control lighting (light color and mode)
- Product Dimensions:
- Length: 403.45 mm
- Width : 212 mm
- Height : 534 mm
- Additional information:
- Support for GPUs up to 400mm long
- Support for power supplies (PSU) up to 220mm long
- Expansion slots: 7 (for low profile cards), 4 (for standard cards with extension cable)
- Dust filters: 1×Bottom, 1×Front Magnetic, 1×Top Magnetic
The LIAN LI SUP01 chassis is an ideal choice for users looking for innovative design and high cooling efficiency while preserving desktop space.
