The Lian Li UNI FAN TL 140 fan is designed to deliver superior performance while minimizing noise. Each fan features Liquid Crystal Polymer (LCP) blades for high precision, and is powered by a Fluid Dynamic Bearing (FDB) with copper shielding to ensure stable rotation and long fan life. It generates low noise with a maximum airflow of 103.9 CFM and a maximum static pressure of 2.34 mm H2O.
Features:
- Fan blades made of LCP to reduce vibrations and increase efficiency.
- Fluid dynamic bearing with copper shield to ensure fan stability and durability.

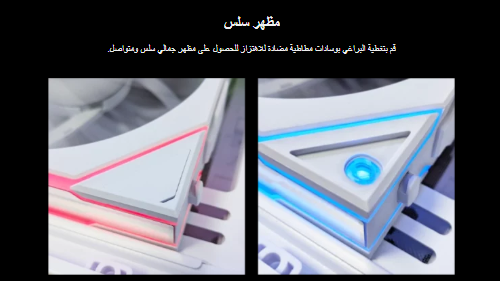

- Magnifying infinity mirror around the frame with a longer light guide for a uniform, streamlined look.
- Dual-zone lighting effects for increased lighting customization.
- UNIFAN interlocking system for easy cable management.
- Cables can be connected from both sides for greater installation flexibility.
- Support connecting up to 10 fans per port on the console via POGO serial cable.
- Full control of lighting and fan speed via L-Connect 3 software.
- Includes three fans with controller .
Specifications:

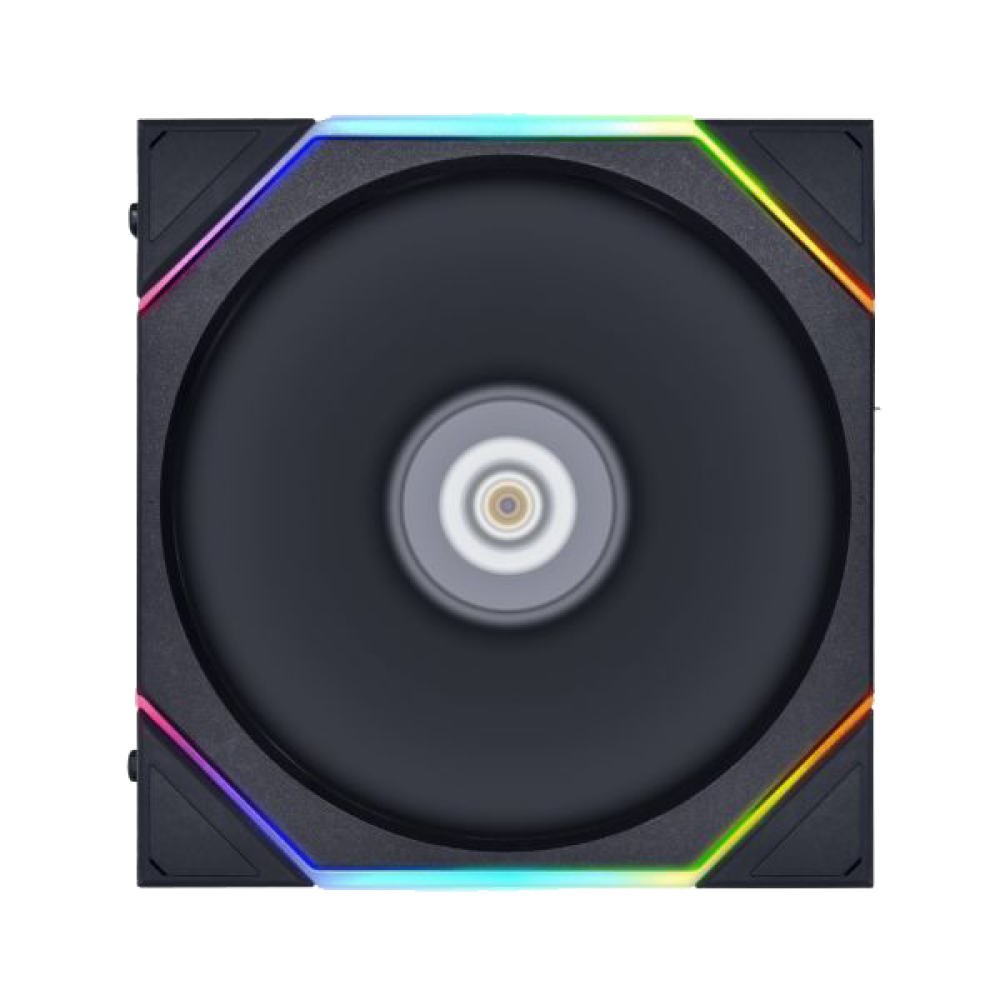

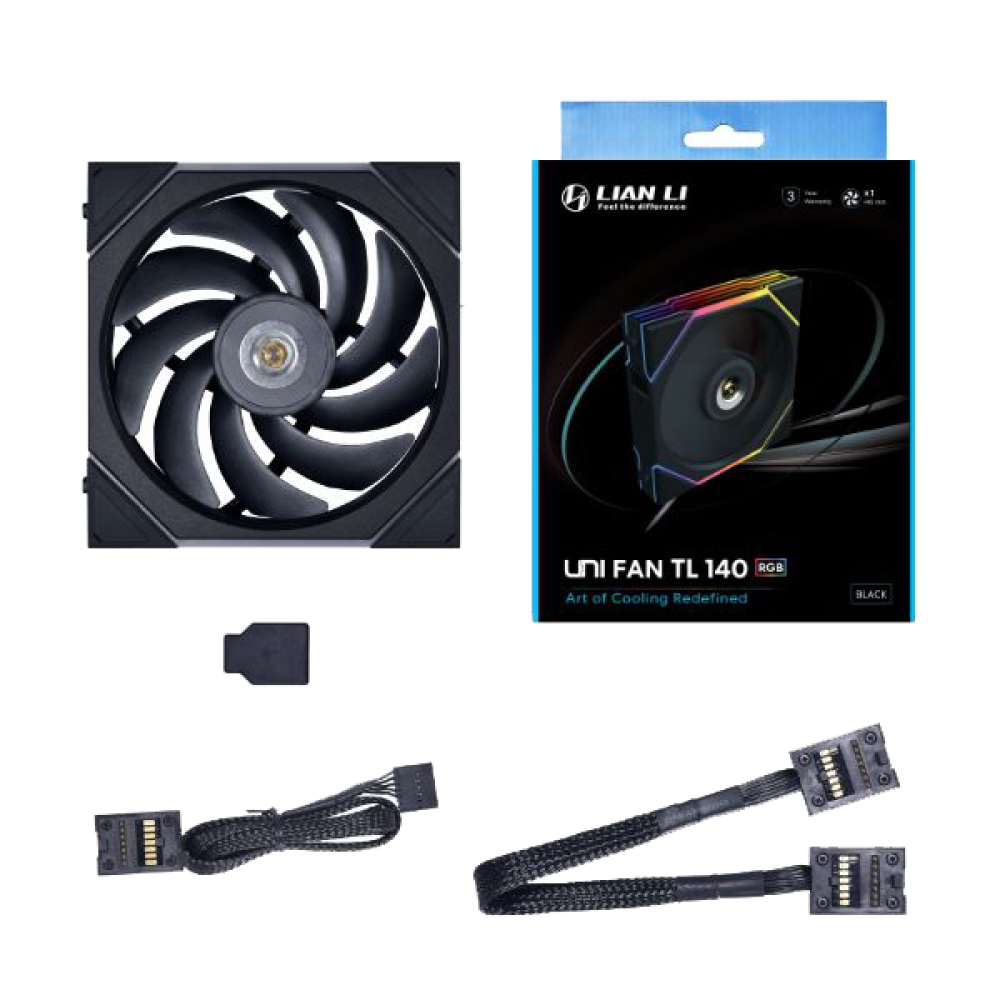

- Product Name: Lian Li UNI FAN TL 140 Fan, White.
- The mark Commercial: Lian Li.
- Color: Black.
- Model Name: 14TL1B .
- Number of fans: 1.
- Control unit: No.
- type Connector: UNI FAN controller cable.
- Dimensions Fan: 144 x 140 x 28mm.
- speed Fan: 200~1800rpm.
- limit The farthest To press Air: 2.34 mmH2O.
- limit The farthest to flow Air: 103.9 CFM.
- level Noise: 29 dB(A) max.
- energy Input: 4.6W.
- Material : PA66 / LCP .
- Effort Rated: 12V DC (for fan) and 5V (for lighting).

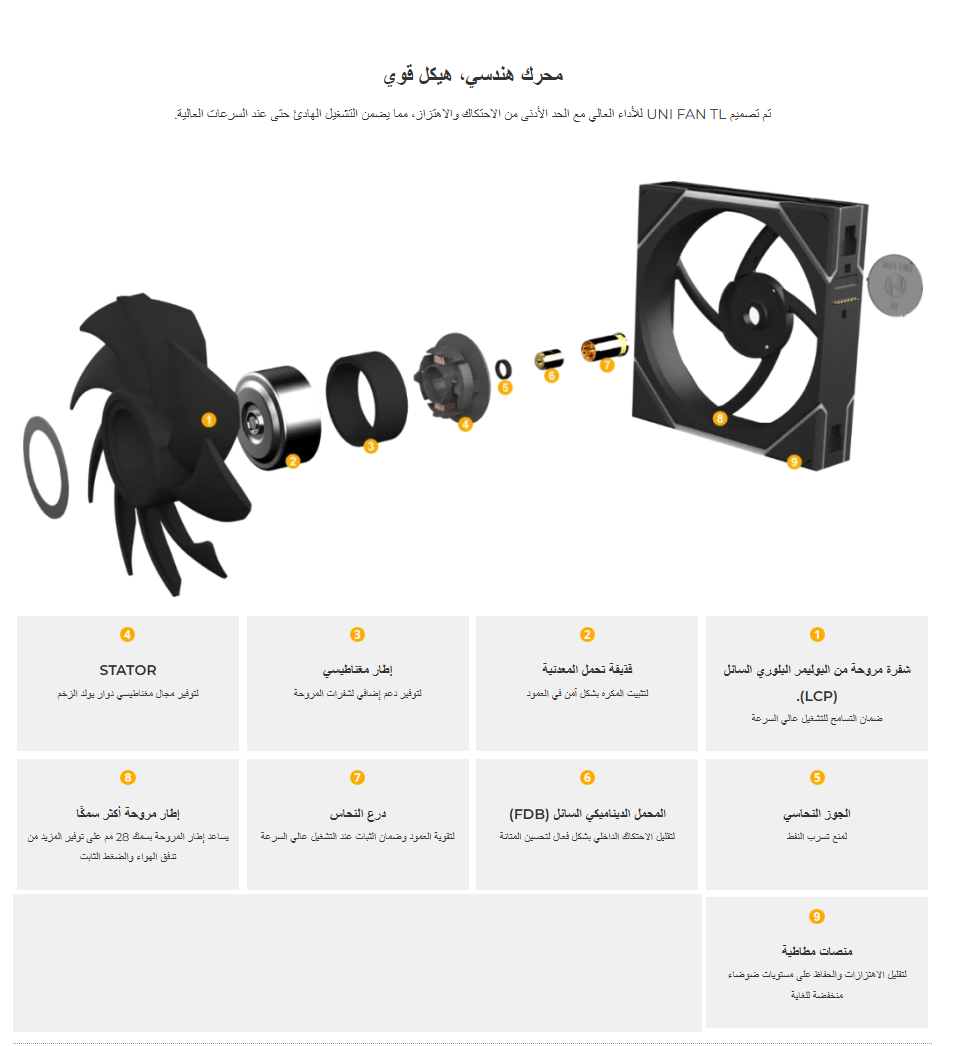

- type Bearing: Fluid Dynamic Bearing (FDB).
- Operating voltage: 12V DC and 5V AC.
