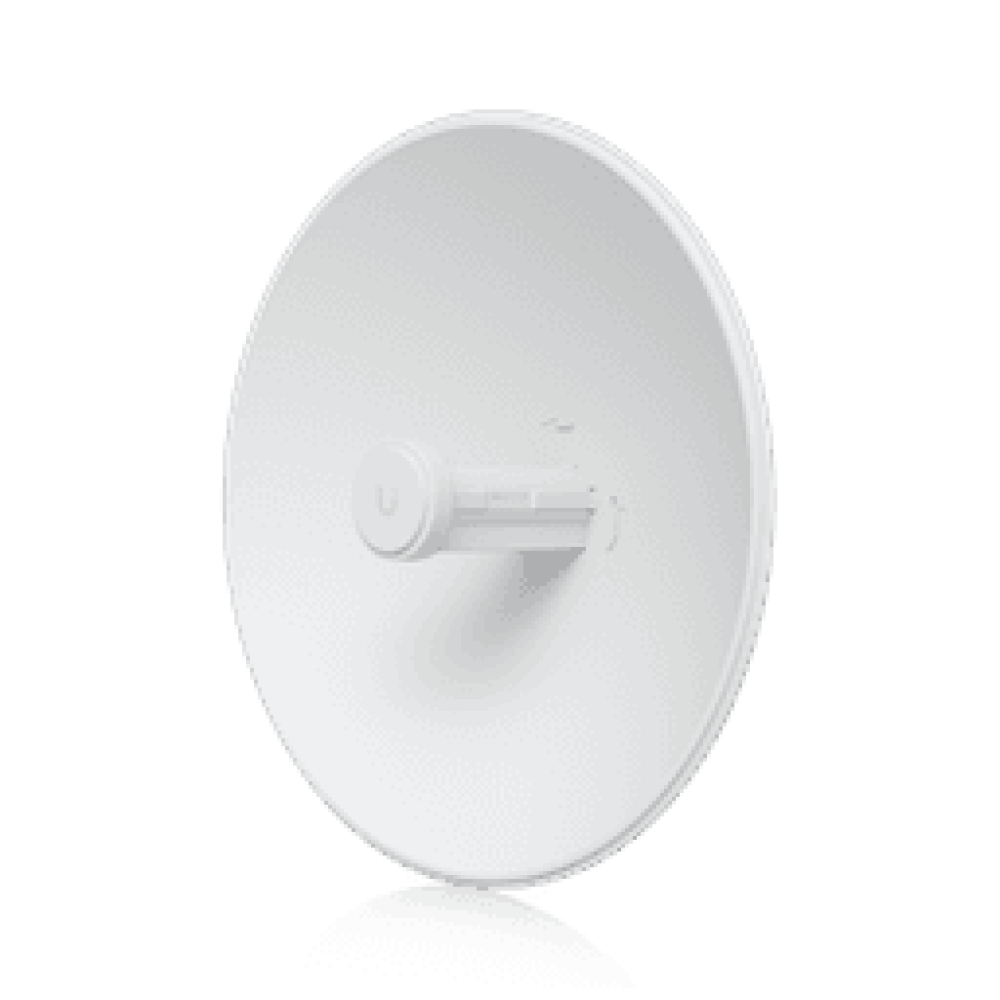

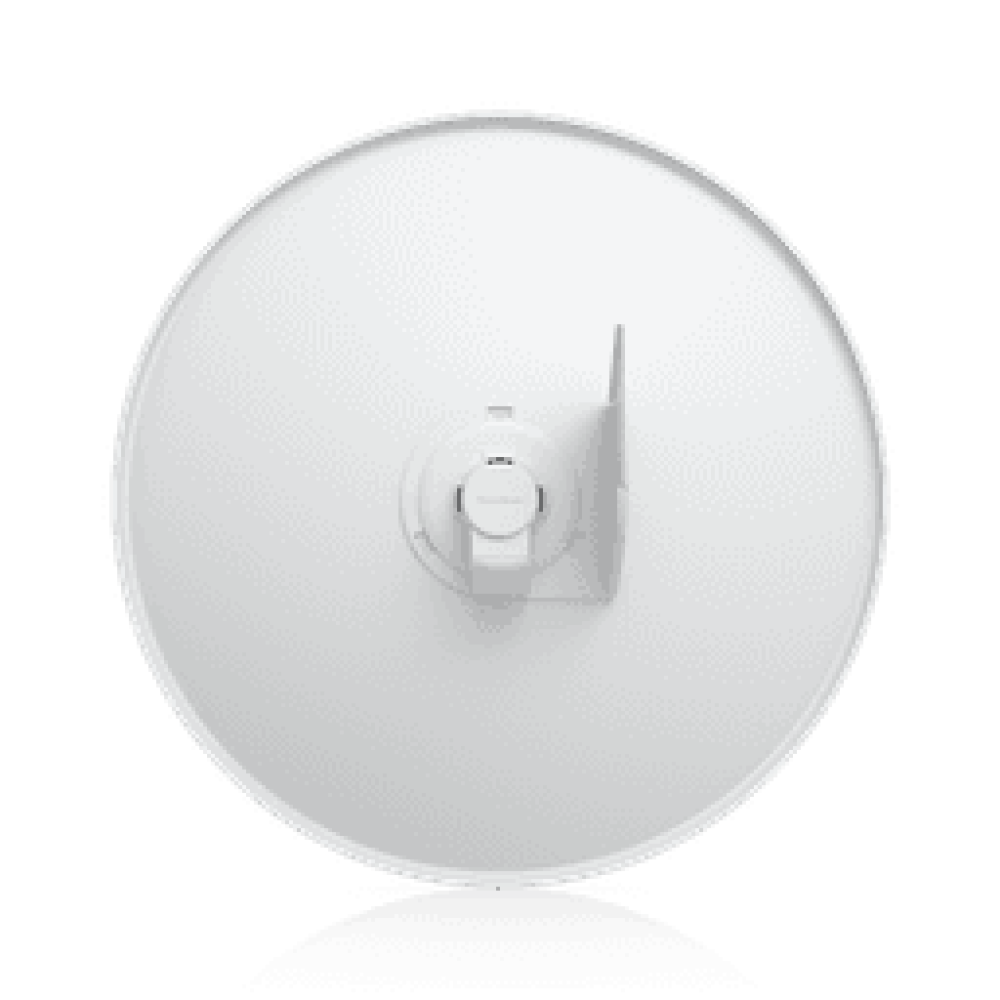

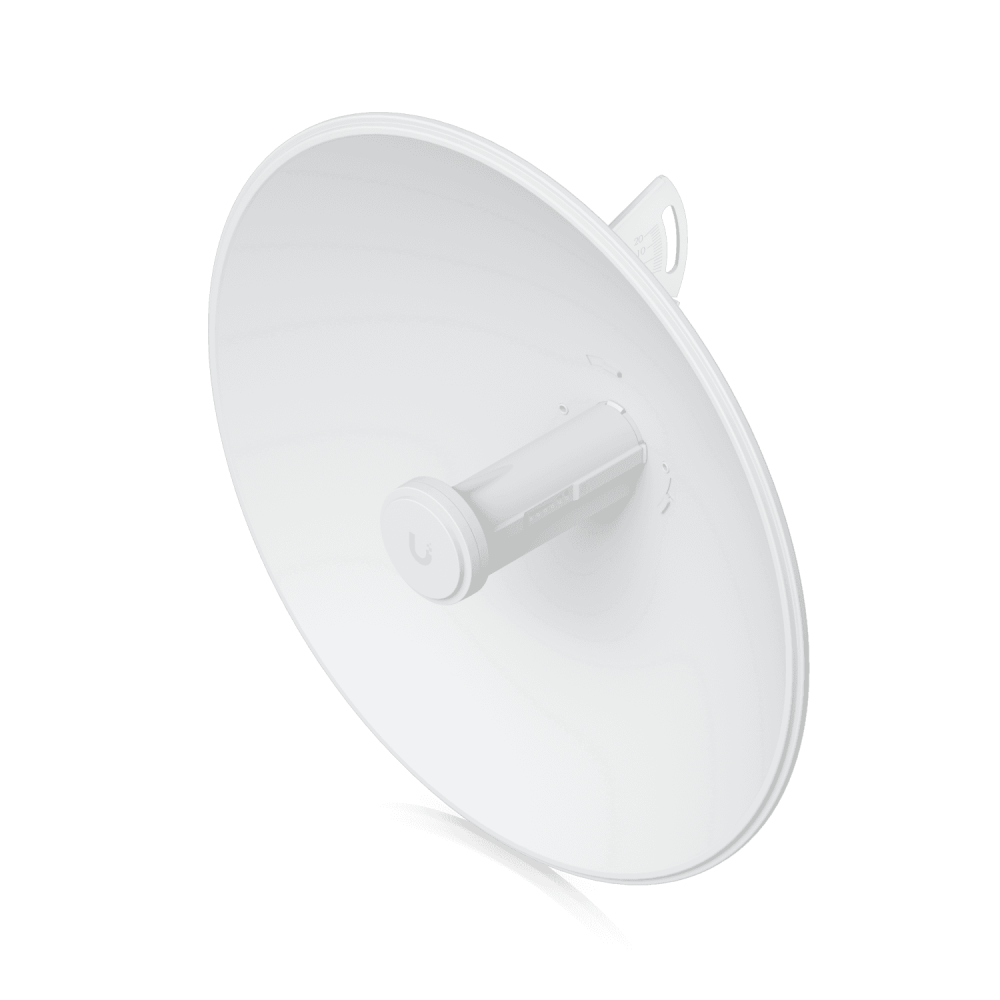

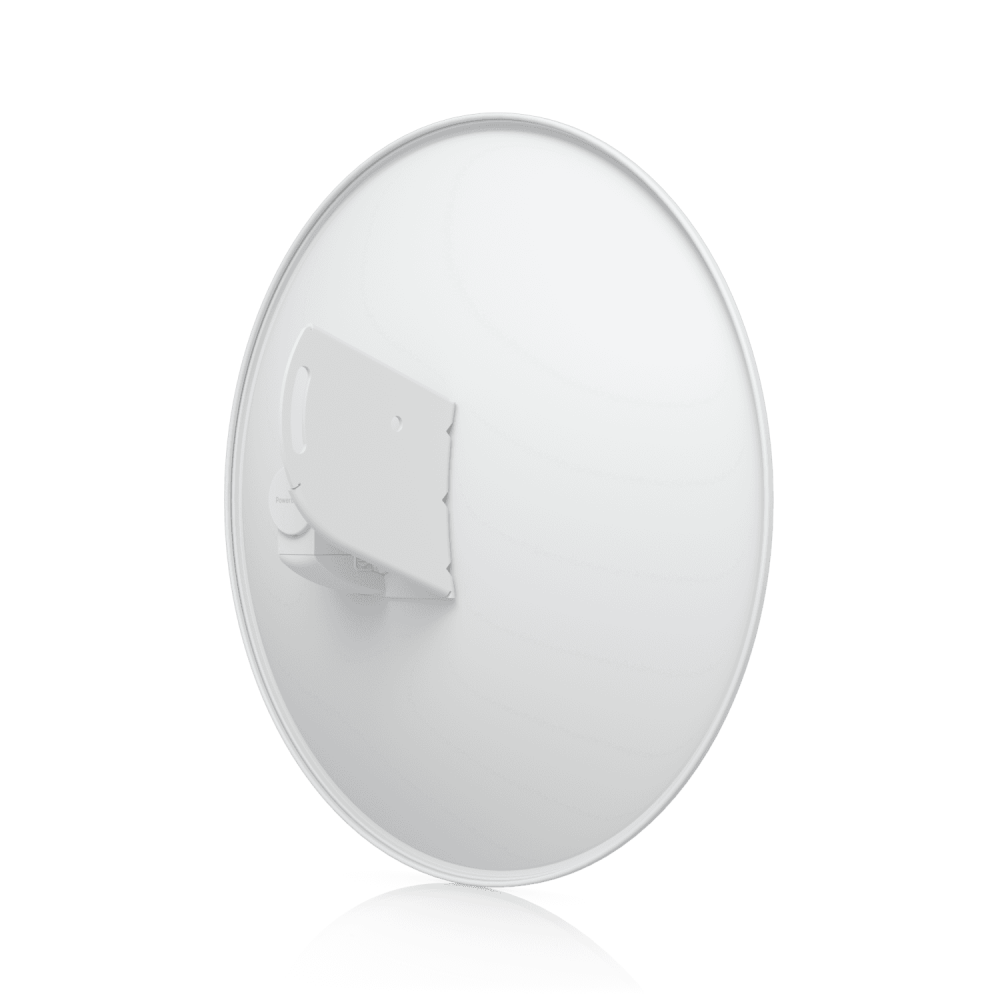

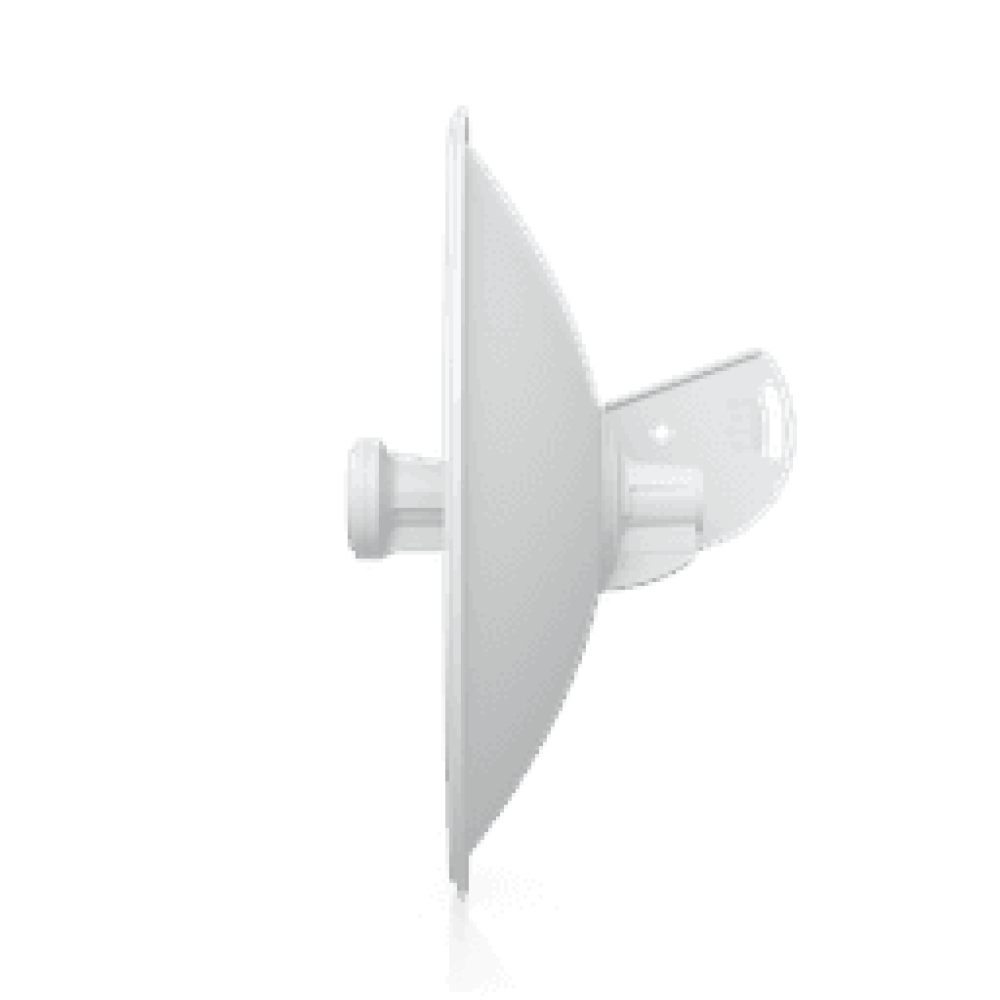

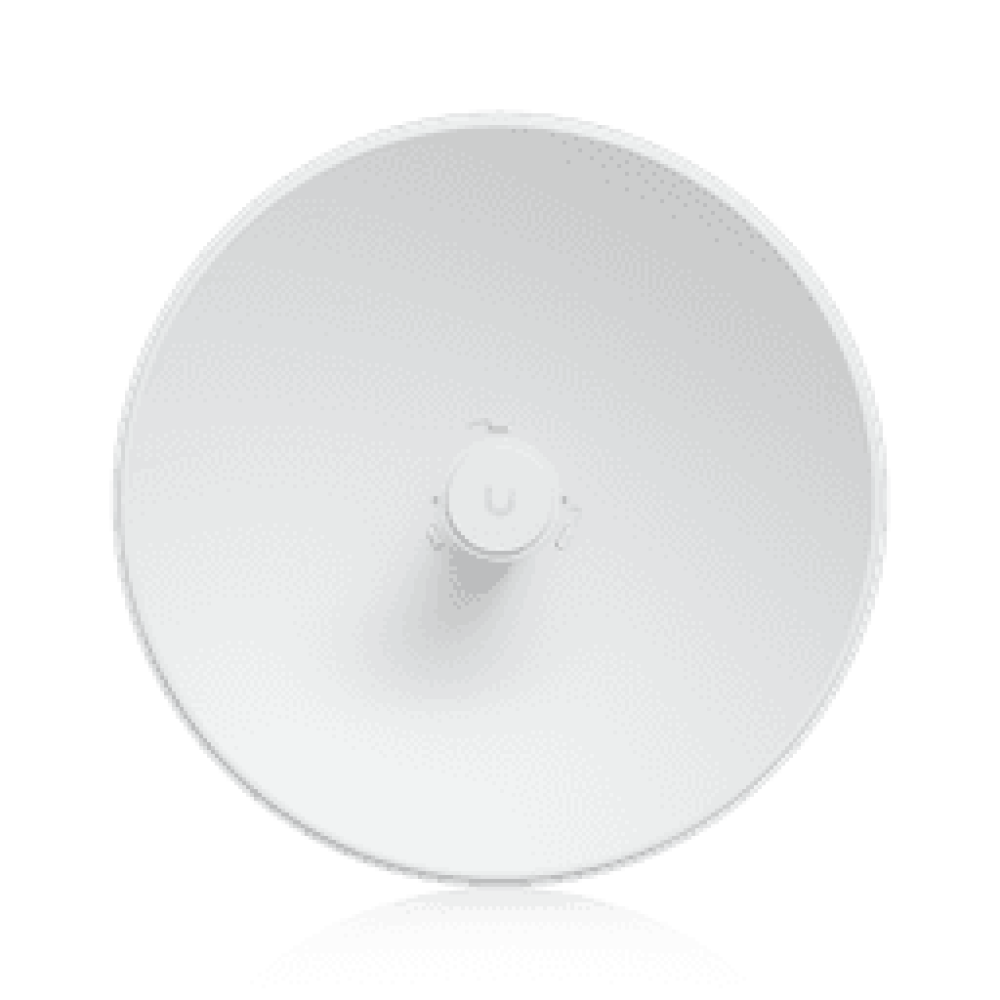

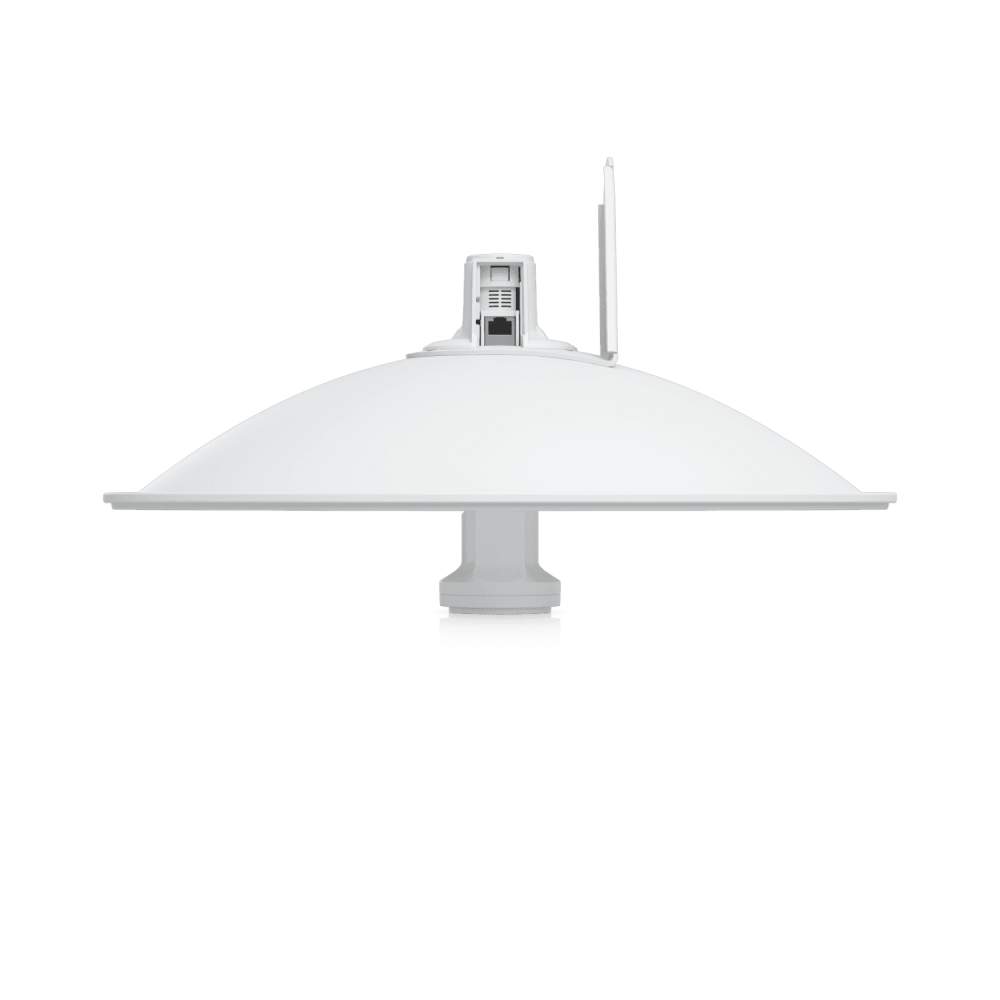

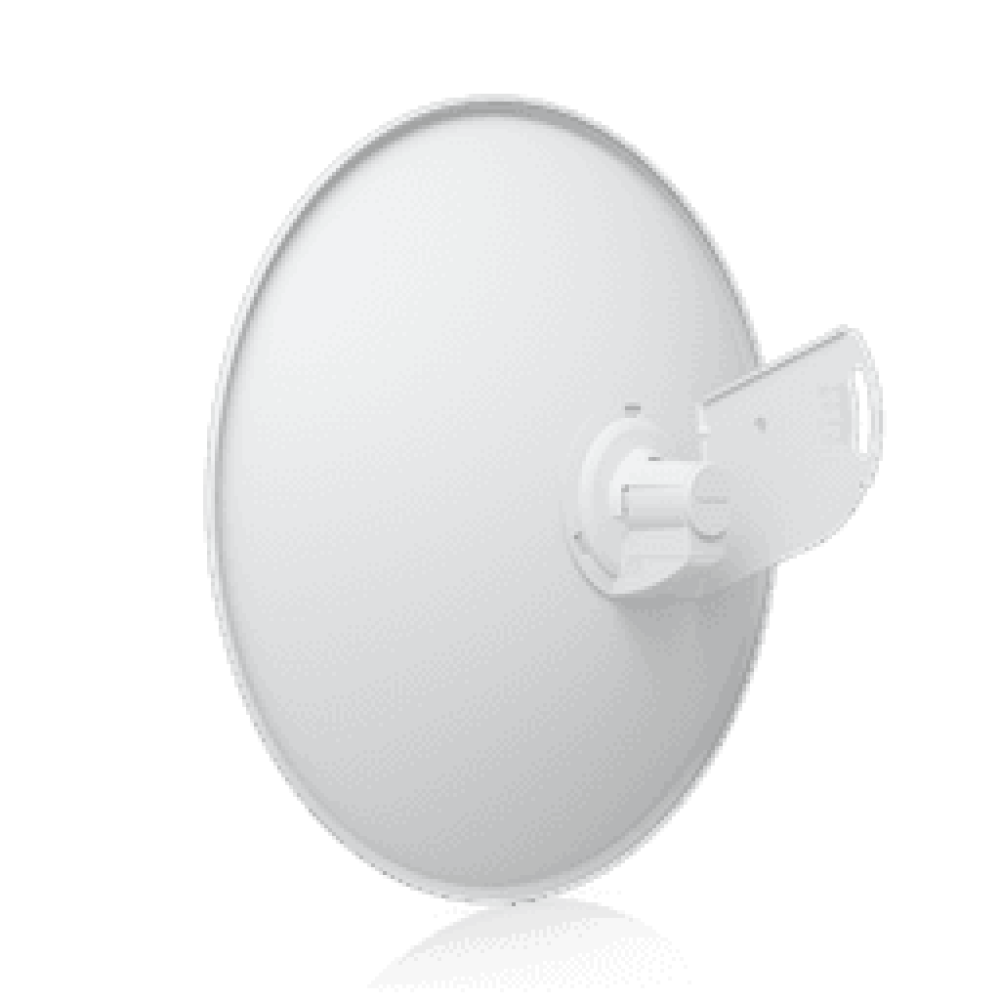

If you are looking for a professional solution to transmit internet over long distances with high stability, the PowerBeam M5-400 delivers powerful performance thanks to its high-gain antenna and advanced AirMax technology, providing a stable wireless connection that can reach tens of kilometers. With its durable design and ability to withstand harsh environmental conditions, it is an ideal choice for linking buildings or delivering internet to remote areas efficiently.
Features:
- Powerful wireless performance with throughput exceeding 150+ Mbps
- Long-range connectivity of more than 25 km
- High-gain 25 dBi antenna for stronger signal performance
- Weather-resistant design (wind, rain, and heat)
- AirMax technology for improved stability and reduced interference
- Low power consumption (only 8W)
- LED indicators for power, network, and signal status
- Software-adjustable signal strength (RSSI)
- Easy installation with included mounting kit
- Can be used as both transmitter and receiver (Bridge mode)
Specifications:
- Product Name: Ubiquiti PowerBeam M5-400 – Professional 5GHz Wireless Bridge (Single Pack)
- Model Name: PowerBeam M5
- Model Number: PBE-M5-400
- Brand: Ubiquiti
- Color: White
- Compatibility: Compatible with AirMax systems and Ubiquiti wireless networks
- Connectivity Type: Wireless + Wired via Ethernet
- Port: (1) RJ45 Gigabit Ethernet port (1GbE)
- Dimensions: 420 × 420 × 275 mm
- Weight: 1.8 kg
- Material: UV-stabilized plastic
- Mounting: Pole mount kit (included)
- Wind Survivability: Up to 200 km/h
- Wind Loading: 342.5 N at 200 km/h
- Power Method: Passive PoE
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
- Supported Voltage Range: 20 – 27V DC
- Max Power Consumption: 8W
- Max TX Power: 26 dBm
- Antenna Gain: 25 dBi
- Protection: ESD/EMP protection up to ±24kV
- LED Indicators: Power, LAN, WLAN
- Durability Tests:
- Salt Fog Test
- Vibration Test
- Temperature Shock Test
- UV Exposure Test
- Wind-Driven Rain Test
- Operating Temperature: -40°C to 70°C
- Operating Humidity: 5% to 95% non-condensing
- Certifications: CE, FCC, IC
- NDAA Compliance: Yes
- System Specifications:
- System Gain: 22 dBi
- Channel Widths: 5 / 10 / 20 / 30 / 40 MHz
- Polarization: Dual Linear
- Operating Frequency:
- Worldwide: 5170 – 5875 MHz
- US/CA: 5725 – 5850 MHz
- Package Contents:
- PowerBeam M5-400 device
- Mounting kit
- PoE adapter
- Power cable
- User manual
If you need to connect two points over long distances with high stability and lower cost compared to fiber, this device is one of the best practical and professional solutions 👌
