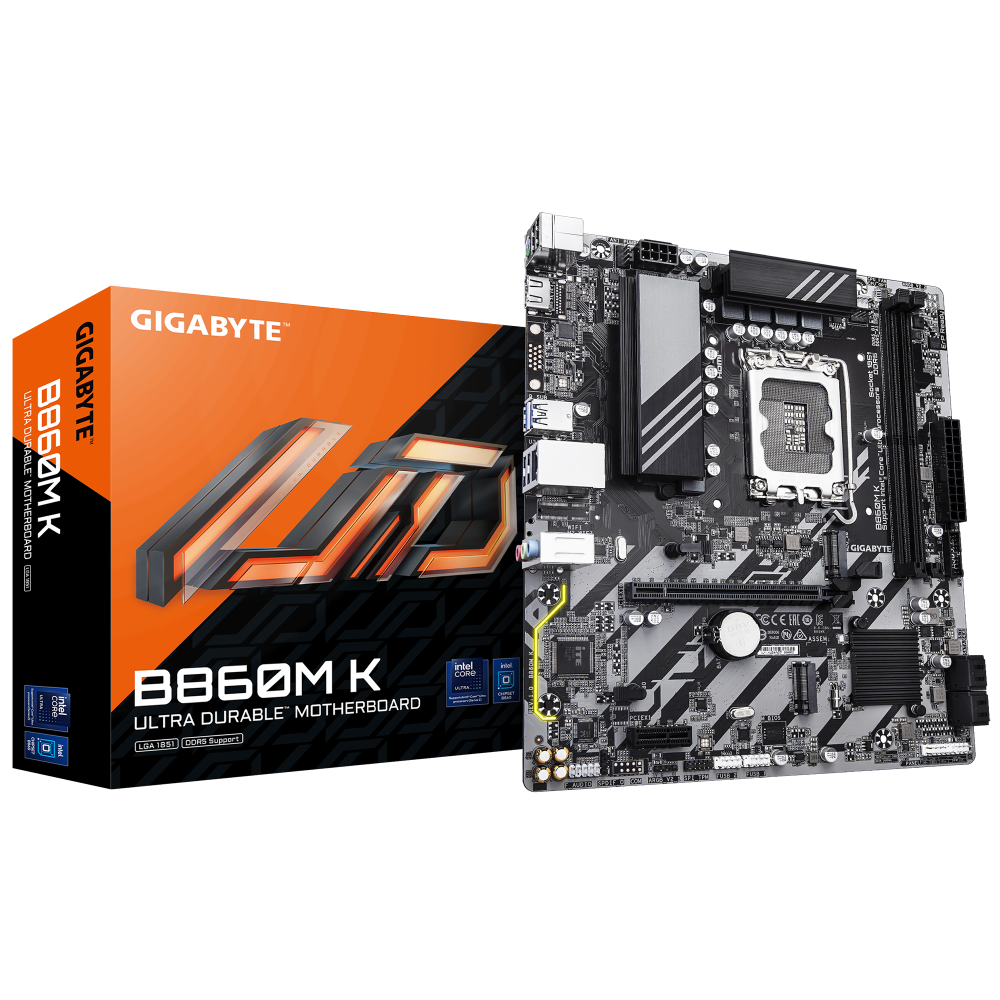

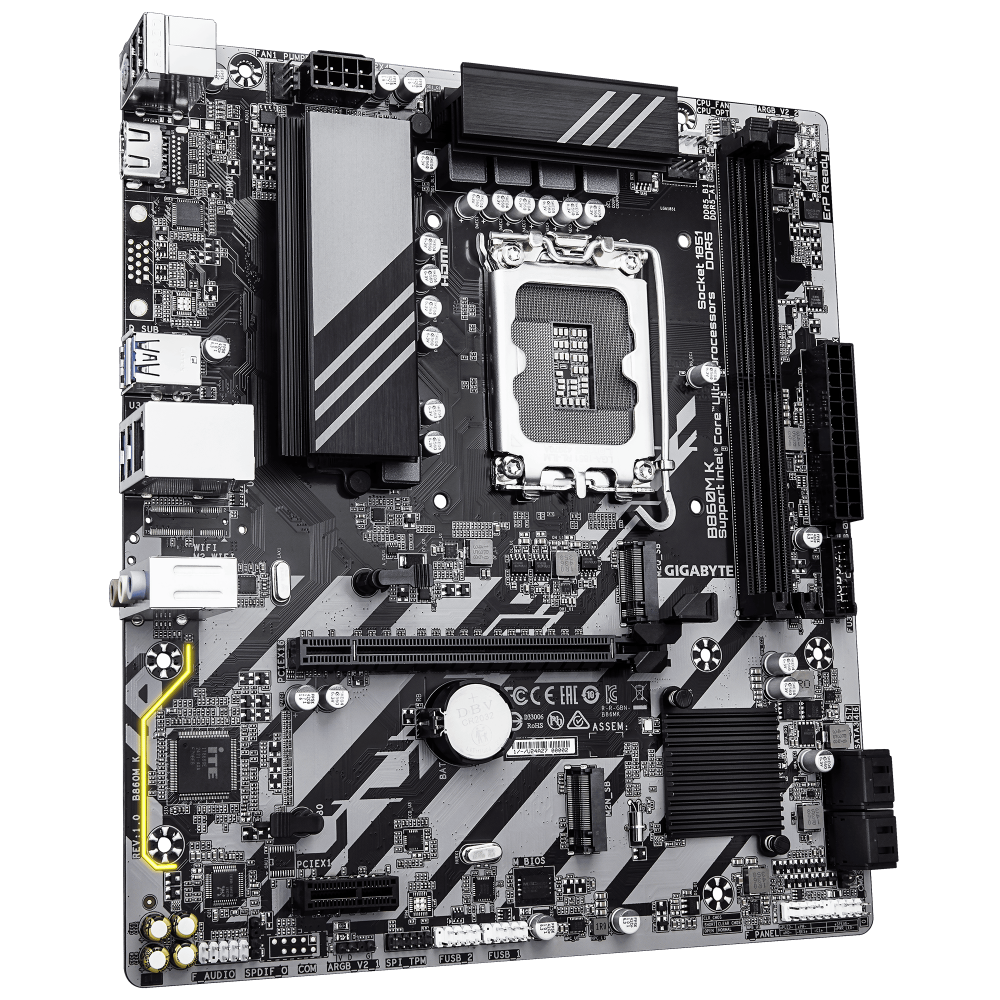

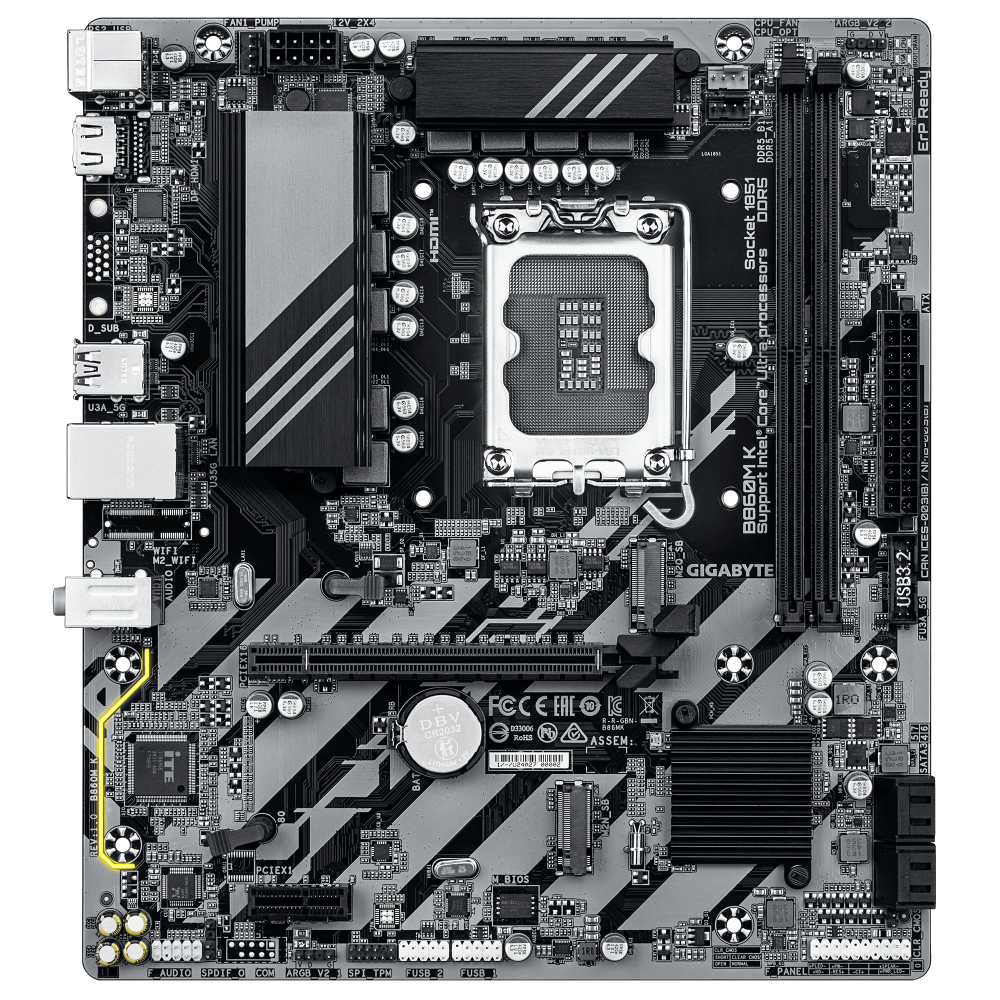

GIGABYTE B860M-K DDR5 Motherboard for Intel Core Ultra Processors LGA 1851 Micro ATX - Black

If you're looking for a modern motherboard that combines stable performance with advanced technologies for your new build, the GIGABYTE B860M-K provides a solid foundation with support for the latest processors and memory, along with versatile expansion options. With DDR5 support, PCIe 4.0, and fast M.2 storage, you’ll get high-speed performance and responsiveness for both everyday use and gaming, all in a practical design that fits most builds.

Features:

• Supports the latest Intel Core Ultra processors with LGA1851 socket
• DDR5 memory support with high speeds and overclocking capability
• Dual Channel design for improved RAM performance
• PCIe 4.0 x16 slot for powerful graphics card performance
• Fast storage support via PCIe 4.0 M.2 slots
• RAID support (0 / 1 / 5 / 10) for performance and data protection
• High-definition Realtek 7.1-channel audio
• Gigabit LAN (1Gbps) for stable network connectivity
• Smart Fan 6 technology for intelligent cooling control
• GIGABYTE Control Center support for full system management
• Anti-Sulfur resistor design for enhanced durability

Specifications:

• Product Name: GIGABYTE B860M-K DDR5 Motherboard for Intel Core Ultra Processors LGA 1851 Micro ATX - Black
• Model Name: B860M K
• Brand: GIGABYTE
• CPU: Supports Intel Core Ultra processors with LGA1851 socket
• Chipset: Intel B860 Express Chipset
• Memory:
• DDR5 support with speeds:
• 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C) / 8000(O.C) /
• 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) /
• 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) /
• 5600 MHz
• 2 x DIMM slots
• Dual Channel support
• XMP support
• Supports DDR5 Unbuffered DIMM and Non-ECC
• Graphics:
• Integrated Graphics (CPU dependent)
• DisplayPort support up to 4096×2160 @60Hz
• HDMI support up to 4096×2160 @60Hz
• Audio:
• Realtek Audio CODEC
• High Definition Audio
• 7.1 / 5.1 / 2.1-channel support
• S/PDIF Out support
• LAN: Realtek GbE LAN (1Gbps / 100Mbps / 10Mbps)
• Expansion Slots:
• 1 × PCIe x16 (PCIe 4.0)
• 1 × PCIe x1 (PCIe 3.0)
• Storage:
• 2 × M.2 (Socket 3, M Key, PCIe 4.0 x4)
• 4 × SATA 6Gb/s
• RAID 0 / 1 / 5 / 10 support
• USB Ports:
• USB 3.2 Gen 1 (6 total: 4 rear + 2 internal)
• 2 × USB 2.0
• Internal I/O Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan/water cooling pump header
• 2 x addressable RGB Gen2 LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

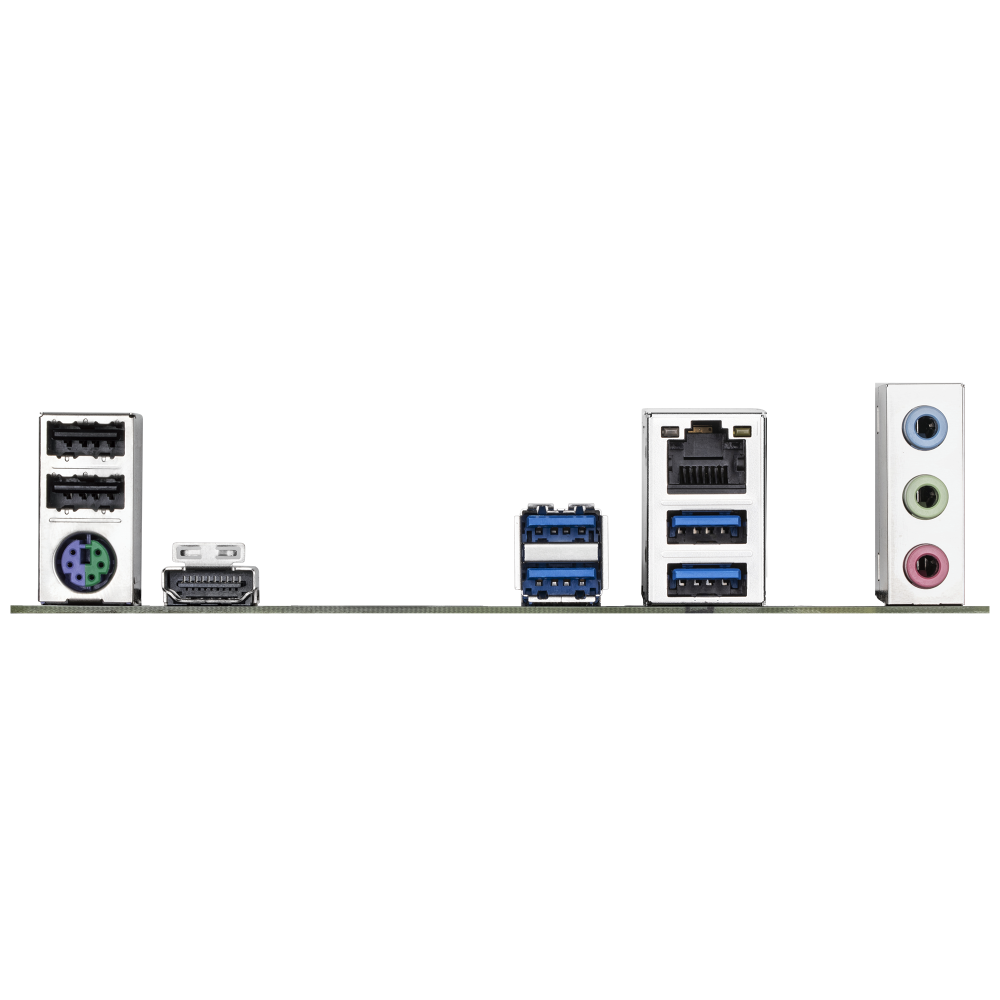

• Back Panel Ports:
• 1 x PS/2 keyboard/mouse port
• 1 x HDMI port
• 4 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks
• I/O Controller: ITE I/O Controller Chip
• H/W Monitoring:
• Voltage detection
• Temperature detection
• Fan speed detection
• Fan failure warning
• BIOS:
• 256 Mbit Flash
• AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Special Features:
• GIGABYTE Control Center support
• Q-Flash support
• Smart Backup support
• Operating System:
• Windows 11 (64-bit)
• Windows 10 (64-bit)
• Form Factor: Micro ATX (24.4 × 21.5 cm)
